KEPT INDUSTRY CO.,LTD

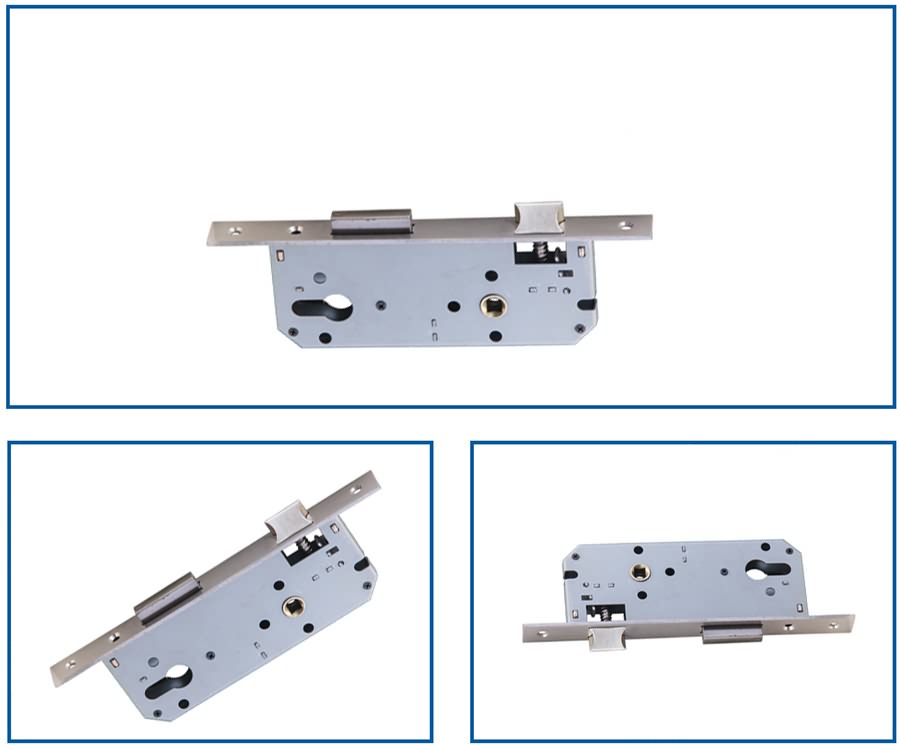

Mortise Door Lock 1K613

Mortise Door Lock 1K613

Center: 85mm
Backset: 45mm
Forend: Steel
Latchbolt:Steel
Deadbolt: Steel
Follower: 8x8mm
Art. No.: 1K613

We specialize in mortise door lock body manufacture since1995. Door lock is our featured product in recent years. Our lock body is mainly supplied to countries of Europe and Middle East market.

door lock,mortise door lock,mortise door lock for interior wooden door
Mortise Door Lock 1K613



Forend: Stainless steel

Latch Bolt: steel latch bolt with nickle plated (reversable)

Dead Bolt: steel deadbolt with nickle plated(2 turns)

Follower: 8x8mm,sintersteel material with zinc plated

Lock Case: Pre-galvanized steel

Front & striking plates available in radius or rectangular

Fixing with nickel plated self-tapping screw
Details:

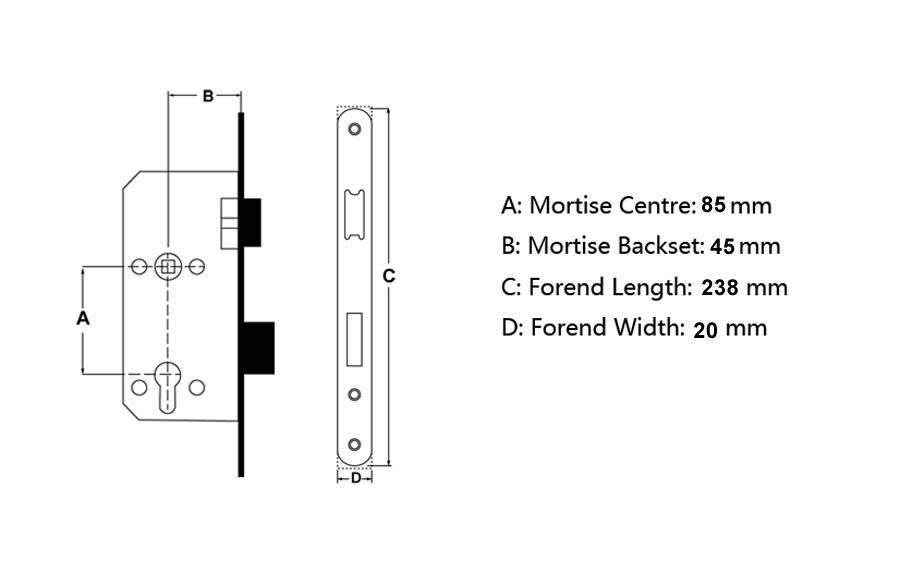

Drawings:

Din:
Depending of the pivot direction of a door, a door is classified as a left and right hand door.

The door direction or side definition according to DIN 107 is determined as follows:

Visible position of the door hinges

On the left = DIN left

Visible position of the door hinges

On the right = DIN right

Furthermore, common definitions derive from the access direction.




Inner Packing: 1 PC per white or color box with customer logo.

Outer Packing: 30 PC per carton box.

We can also work according to customers’ requirements.
